Optiplex 3000 tower

Optiplex 3000 tower

Core i3 / i5

Processor:
Intel Celeron Gold G6900
Intel Pentium Gold G7400
12th Generation Intel Core i3
12th Generation Intel Core i5

Memory :
Number of slots - Two DIMM slots
Type - DDR4
Speed - 3200 MHz
Maximum memory - 64 GB
Minimum memory - 4 GB
Memory per slot - 4 GB, 8 GB, 16 GB, or 32 GB

Storage :
2.5-inch, 1 TB, 5400 RPM, SATA, HDD
2.5-inch, 2 TB, 5400 RPM, SATA, HDD
2.5-inch, 500 GB, 7200 RPM, SATA, HDD
2.5-inch, 1 TB, 7200 RPM, SATA, HDD
2.5-inch, 500 GB, 7200 RPM, SATA, HDD, Self-Encrypting, Opal 2.0, FIPS
3.5-inch, 1 TB, 7200 RPM, SATA, HDD
3.5-inch, 2 TB, 7200 RPM, SATA, HDD
3.5-inch, 4 TB, 5400 RPM, SATA, HDD
M.2 2230, 128 GB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 512 GB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 1 TB, PCIe NVMe Gen3 x4, SSD, Class 35
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, SSD, Class 35, Self-Encrypting, Opal 2.0, FIPS
M.2 2280, 256 GB, PCIe NVMe Gen3 x4, SSD, Class 40
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, SSD, Class 40
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, SSD, Class 40
M.2 2280, 2 TB, PCIe NVMe Gen3 x4, SSD, Class 40
M.2 2280, 256 GB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, SSD, Class 40, Self-Encrypting, Opal 2.0, FIPS
M.2 2230, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 35
M.2 2280, 256 GB, PCIe NVMe Gen4 x4, SSD, Class 35
M.2 2280, 256 GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 40

Graphics:
- Integrated Intel® UHD Graphics 730 / 770
- Optional discrete graphics for Tower & SFF:
- AMD Radeon™ 540 (1GB)
- AMD Radeon™ 550 (2GB)
- AMD Radeon™ RX640 (4GB)
I/O
Tower:
Front:
2 USB 2.0 ports
2 USB 3.2 Gen 1 ports
1 Universal audio jack

Rear:
2 USB 3.2 Gen 1 ports
2 USB 2.0 ports with Smart Power On
1 RJ45 Ethernet port
1 DisplayPort 1.4 port
1 HDMI 1.4b port
1 Optional video port (HDMI 2.0b/DisplayPort 1.4/VGA)
1 Serial/PS2 port (optional)

• Optical Drive
Tower:
8x DVD-ROM (optional)
8x DVD±RW (optional)

Wireless
Tower:
Intel® AX210, 2x2 MIMO, 2400 Mbps, 2.40 GHz/5 GHz/6 GHz, Wi-Fi 6E (WiFi 802.11ax), Bluetooth® 5.2
MediaTek® MT7921, 2x2 MIMO, 1200 Mbps, 2.40 GHz/5 GHz, Wi-Fi 6 (WiFi 802.11ax), Bluetooth® 5.2
Intel® 9462, 1x1, 433 Mbps, 2.40 GHz/5 GHz, Wi-Fi 5 (802.11ac), Bluetooth® 5.1

Power Supply :
- 300W internal power supply unit (PSU), 92% Efficient, 80 Plus Platinum
- 240W internal power supply unit (PSU), 85% Efficient, 80 Plus Bronze
- 180W internal power supply unit (PSU), 85% Efficient, 80 Plus Bronze

Operating System :
• Microsoft® Windows 11 Home (64-bit)
• Microsoft® Windows 11 Pro (64-bit)
• Windows 11 Downgrade (Windows 10 image)
• Microsoft® Windows 11 Pro Education (64-bit)
• Ubuntu® 20.04 LTS (64-bit)
• Kylin® v10.1 (China only)
• Windows 10 CMIT Government Edition 64-bit (China only)

Ports & Slots - Tower
Front:

1. Optical Disk Drive (optional)

2. Power Button

3. USB 2.0 (2)

4. Universal Audio Jack

5. USB 3.2 Gen1 Type-A (2)

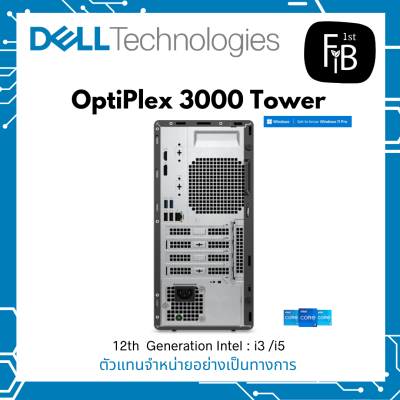

Rear:

6. HDMI 1.4b

7. DisplayPort 1.4

8. USB 3.2 Gen1 Type-A (2)

9. USB 2.0 with Smart Power On (2)

10. FHC PCIe Expansion 1 (2)

11. Power Connector

12. Power Diagnostic Light

13. Optional Port: VGA/DP 1.4/HDMI 2.0b/USB Type-C

14. Optional Port: Serial/PS2

15. Ethernet RJ-45 Port

16. FH PCIe Expansion 16

17. Cable Lock
