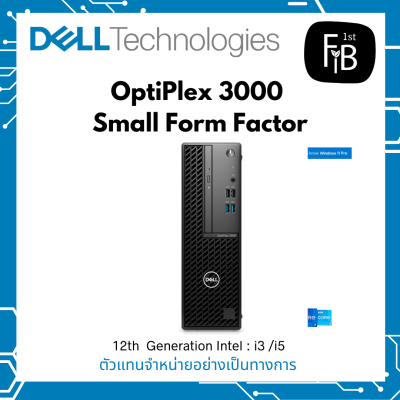

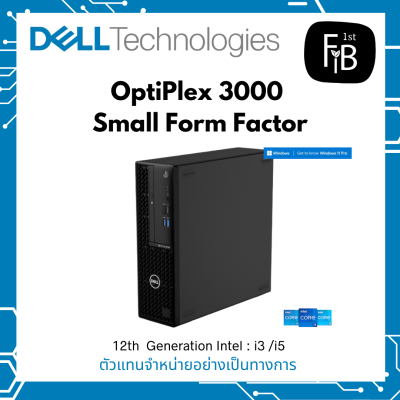

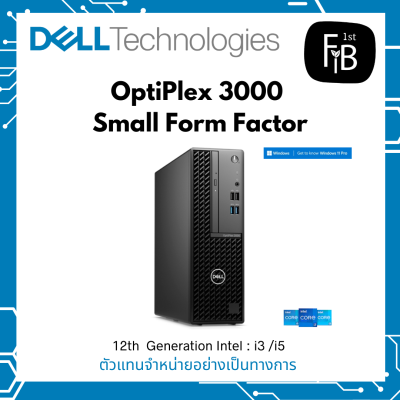

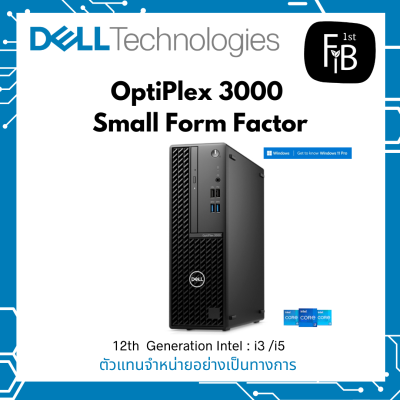

Optiplex 3000 Small Form Factor

Optiplex 3000 Small Form Factor

Core i3 / i5

Processor:
Intel Celeron G6900
Intel Pentium Gold G7400
12th Generation Intel Core i3
12th Generation Intel Core i5

Memory :
Number of slots - Two SODIMM slots
Type - Dual Channel DDR4
Speed - 3200 MHz
Maximum memory - 64 GB
Minimum memory - 4 GB
Memory per slot - 4 GB, 8 GB, 16 GB, or 32 GB

Storage :
2.5-inch, 500 GB, 7200 RPM, SATA HDD
2.5-inch, 500 GB, 7200 RPM, Opal Self-Encrypting FIPS HDD
2.5-inch, 1 TB, 5400 RPM, SATA HDD
2.5-inch, 1 TB, 7200 RPM, SATA HDD
2.5-inch, 2 TB, 5400 RPM, SATA HDD
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, Class 35 SSD
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, Class 35 SED
M.2 2230, 512 GB, PCIe NVMe Gen3 x4, Class 35 SSD
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, Class 40 SSD
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, Class 40 SED
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, Class 40 SSD
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, Class 40 SED
M.2 2280, 2 TB, PCIe NVMe Gen3 x4, Class 40 SSD
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, Opal Self-Encrypting Class 40 SSD

Graphics:
Intel® UHD Graphics 710 Intel® UHD Graphics 730 Intel® UHD Graphics 770 AMD Radeon™ RX 640, 4GB GDDR5 (optional) AMD Radeon™ 540, 1GB GDDR5 (optional) AMD Radeon™ 550, 2GB GDDR5 (optional)

I/O
Front:
(2) USB 2.0 ports
(2) USB 3.2 Gen 1 ports
Universal audio jack Rear:
(2) USB 3.2 Gen 1 ports
(2) USB 2.0 ports with Smart Power On RJ45 Ethernet port DisplayPort 1.4 port
HDMI 1.4b port

PCIe expansion card slots (internal) : PCIe expansion card slots (internal) : One Full Height Gen4 PCIe x16 SlotTwo Full Height Gen4 PCIe x1 Slots

Power Supply :
- 300W internal power supply unit (PSU), 92% Efficient, 80 Plus Platinum
-180W internal power supply unit (PSU), 85% Efficient, 80 Plus Bronze

Operating System :
• Microsoft® Windows 11 Home (64-bit)
• Microsoft® Windows 11 Pro (64-bit)
• Windows 11 Downgrade (Windows 10 image)
• Microsoft® Windows 11 Pro Education (64-bit)
• Ubuntu® 20.04 LTS (64-bit)
• Kylin® v10.1 (China only)
• Windows 10 CMIT Government Edition 64-bit (China only)

Ports & Slots - Small Form Factor
Front:

1. Power Button
2. Optical Disk Drive (optional)
3. USB 2.0 (2)
4. Universal Audio Jack
5. USB 3.2 Gen1 Type-A (2)

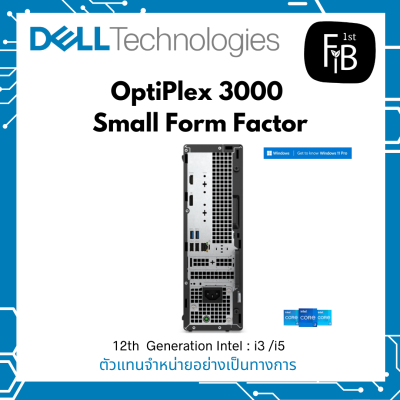

   Rear:
6. HDMI 1.4b
7. DisplayPort 1.4
8. USB 3.2 Gen1 Type-A (2)
9. USB 2.0 (2)
10. LP PCIe Expansion (2)
11. Power Connector
12. Power Diagnostic Light
13. Optional Port: VGA/DP 1.4/HDMI 2.0b/USB Type-C
14. Optional Port: Serial/PS2
15. Cable Lock 16.
16. Knock-out Slots for Wireless Antenna
17. Ethernet RJ-45 Port
