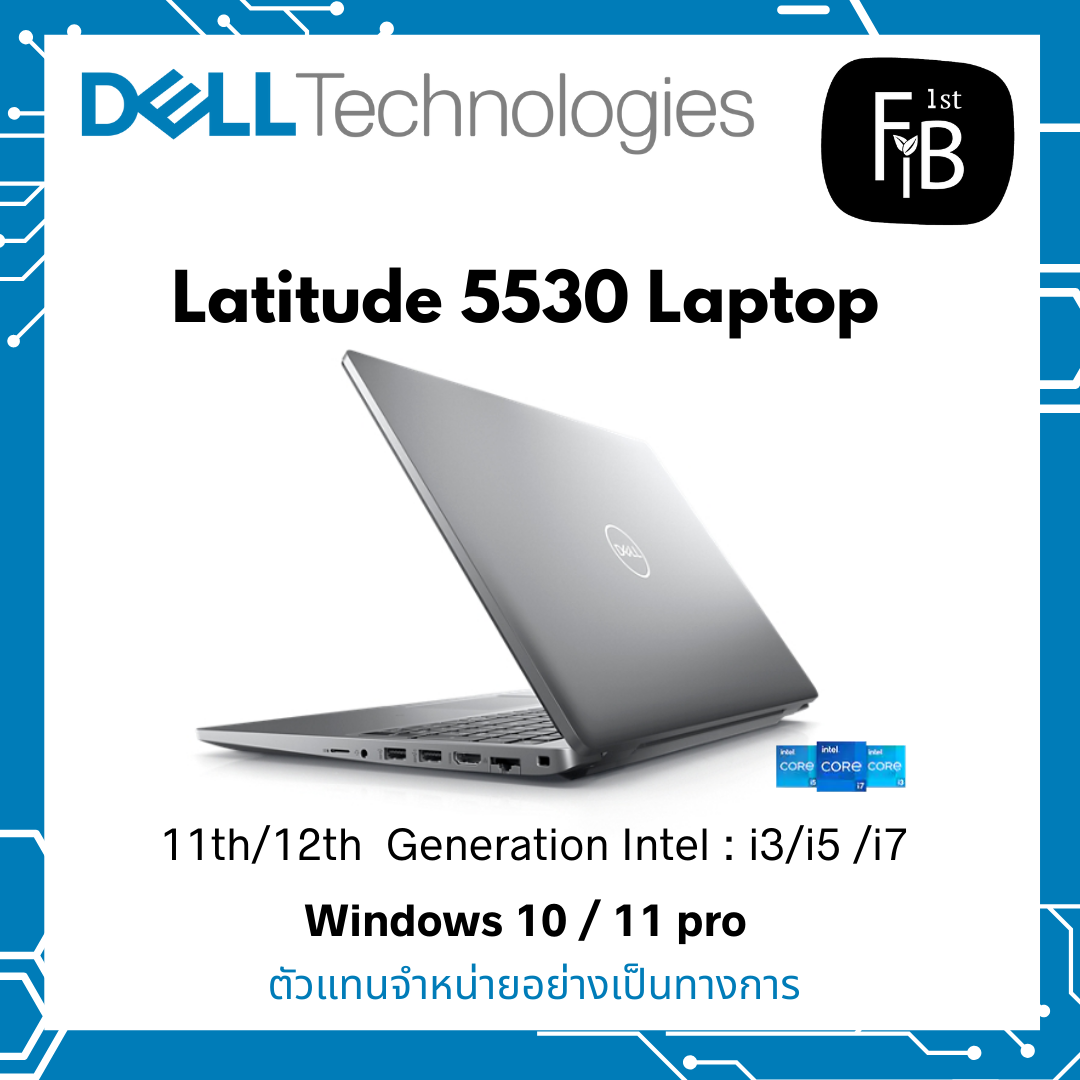

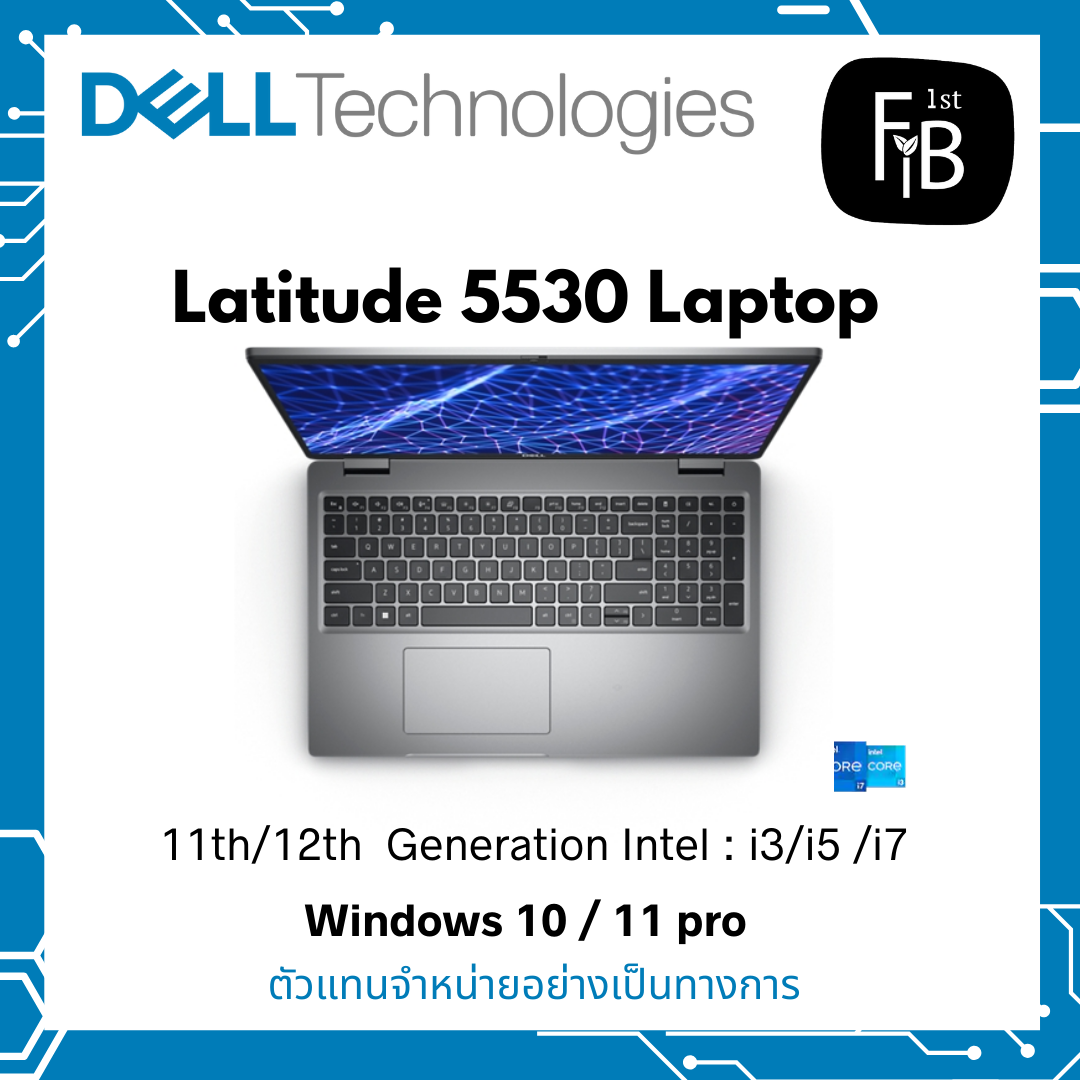

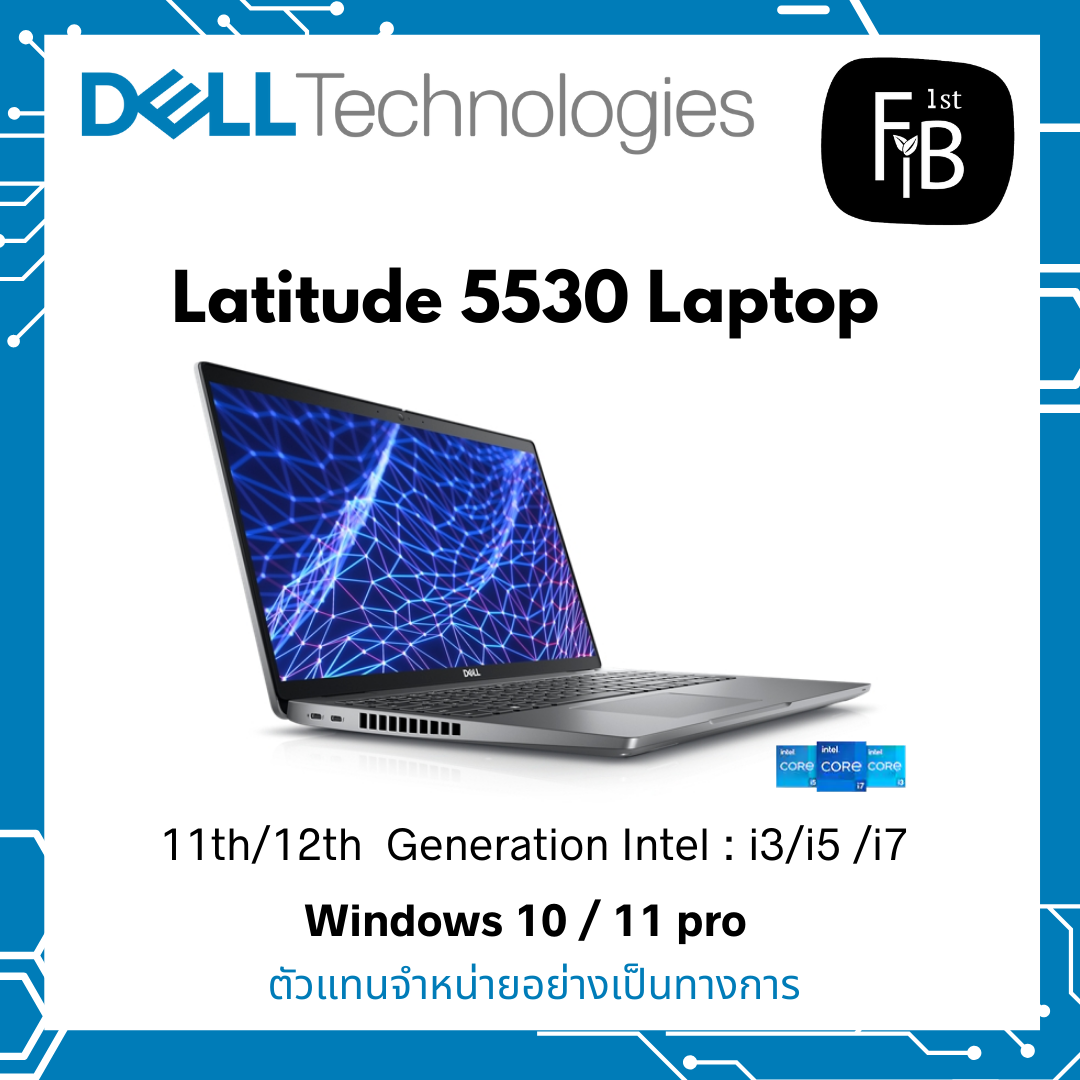

Latitude 5530
Suppot CPU : i3 / i5 / i7
Processor
11th Generation Intel® Core™ i5-1145G7 (8 MB cache, 4 cores, 8 threads, 2.60 GHz to 4.40 GHz, 17.5 W)
12th Generation Intel® Core™ i3-1215U (10 MB cache, 2+4 cores, 8 threads, 1.20 GHz to 4.40 GHz, 15 W)
12th Generation Intel® Core™ i5-1235U vPro® Essentials3 (12 MB cache, 2+8 cores, 12 threads, 1.30 GHz to 4.40 GHz, 15 W)
12th Generation Intel® Core™ i5-1245U vPro® (12 MB cache, 2+8 cores, 12 threads, 1.60 GHz to 4.40 GHz, 15 W)
12th Generation Intel® Core™ i7-1255U vPro® Essentials3 (12 MB cache, 2+8 cores, 12 threads, 1.70 GHz to 4.70 GHz, 15 W)
12th Generation Intel® Core™ i7-1265U vPro® (12 MB cache, 2+8 cores, 12 threads, 1.80 GHz to 4.80 GHz, 15 W)
12th Generation Intel® Core™ i5-1240P vPro® Essentials3 (12 MB cache, 4+8 cores, 16 threads, 1.70 GHz to 4.40 GHz, 28 W)
12th Generation Intel® Core™ i5-1250P vPro® (12 MB cache, 4+8 cores, 16 threads, 1.70 GHz to 4.40 GHz, 28 W)
12th Generation Intel® Core™ i7-1270P vPro® (18 MB cache, 4+8 cores, 16 threads, 2.20 GHz to 4.80 GHz, 28 W)
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Windows 10 Pro, 64-bit
Windows 10 Home, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Home, 64-bit
Ubuntu® Linux® 20.04 LTS, 64-bit
Video Card
Integrated:
Intel® Iris® Xe Graphics for Intel® i5 / i7 processors with dual-channel memory
Intel® UHD Graphics for Intel® i3 processors or Intel® i5 / i7 processors with single-channel memory
Discrete:
NVIDIA® MX550, 2GB GDDR6 (Optional)
Display
15-inch, HD, 1366 x 768, 60 Hz, anti-glare, non-touch, 45% NTSC, 220 nits, twisted nematic
15-inch, FHD 1920 x 1080, 60 Hz, anti-glare, non-touch, 45% NTSC, 250 nits, wide-viewing angle
15-inch, FHD 1920 x 1080, 60 Hz, anti-glare, touch, 45% NTSC, 250 nits, wide-viewing angle
15-inch, FHD 1920 x 1080, 60 Hz, anti-glare, non-touch, 100% sRGB, 400 nits, wide-viewing angle, low blue light
15-inch, UHD 3840 x 2160, 60 Hz, anti-glare, non-touch, 100% sRGB, 400 nits, wide-viewing angle, low blue light
Memory
Up to 16GB DDR4, 3200 MHz, single-channel
Up to 64GB DDR4, 3200 MHz, dual-channel
*ดูเพิ่มเติม Data Sheet/เป็นไปตามคุณสมบัติพื้นฐานของอุปกรณ์ที่สามารถรองรับได้
Storage Support
M.2 SSD up to 2TB PCIe NVMe
*ดูเพิ่มเติม Data Sheet/เป็นไปตามคุณสมบัติพื้นฐานของอุปกรณ์ที่สามารถรองรับได้
Weight
Weight: 1.59 kg (3.50 lb)i
Camera
720p at 30 fps, widescreen HD RGB camera, Dual-array microphones
1080p at 30 fps, widescreen FHD RGB IR camera, Dual-array microphones
1080p at 30 fps, widescreen FHD RGB IR camera, Dual-array microphones, Ambient light sensor, Human presence detection
WLAN: Support Wi-Fi 6/Bluetooth® 5.2
Ports & Slots
1. uSD 4.0 Memory card reader
2. Universal Audio Jack
3. USB 3.2 Gen 1
4. USB 3.2 Gen 1 with Powershare
5. HDMI 2.0
6. RJ45
7. Wedge Shaped Lock slot
8. 2 x USB Type C Thunderbolt™ 4.0 with Power Delivery & DisplayPort"
9. Contacted SmartCard Reader (optional)
External uSIM card tray (optional, not pictured on back) - eSim capable
